Philips Master LEDtube VLE 1500mm HO 20.5W 840 T8 /單端直接供電/mtr/預訂
Philips Master LEDtube VLE 1500mm HO 20.5W 840 T8 /單端直接供電/mtr/預訂
無法載入取貨服務供應情況

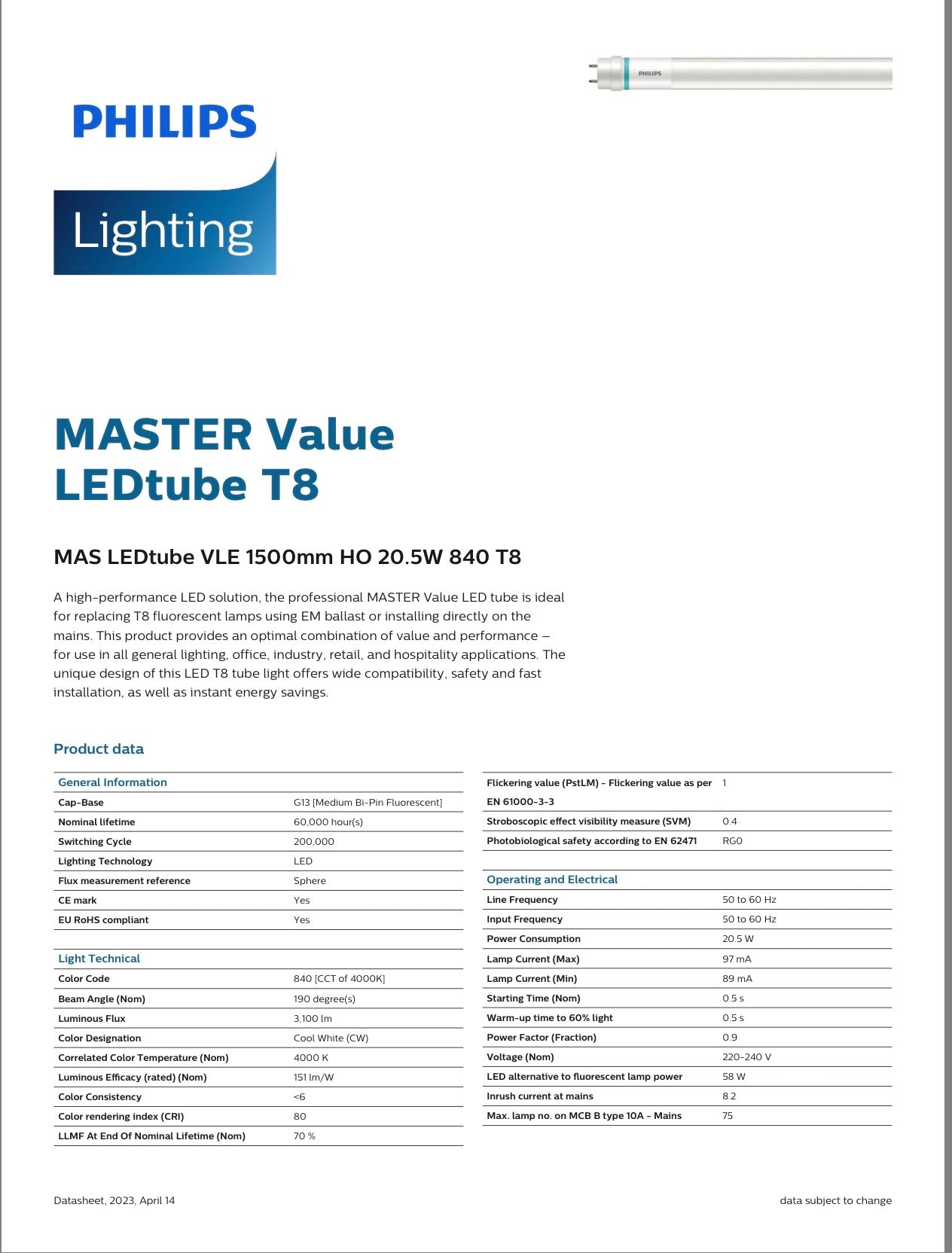

MASTER Value
LEDtube T8
MAS LEDtube VLE 1500mm HO 20.5W 840 T8
A high-performance LED solution, the professional MASTER Value LED tube is ideal for replacing T8 fluorescent lamps using EM ballast or installing directly on the mains. This product provides an optimal combination of value and performance - for use in all general lighting, office, industry, retail, and hospitality applications. The unique design of this LED T8 tube light offers wide compatibility, safety and fast installation, as well as instant energy savings.
Product data.
|
General Information |
|
|
Cap-Base |
G13 [Medium Bi-Pin Fluorescent] |
|
Nominal lifetime |
60,000 hour(s) |
|
Switching Cycle |
200,000 |
|
Lighting Technology |
LED |
|
Flux measurement reference |
Sphere |
|
CE mark |
Yes |
|
EU ROHS compliant |
Yes |
|
|
|
|
Light Technical |
|
|
Color Code |
840 [CCT of 4000K] |
|
Beam Angle (Nom) |
190 degree(s) |
|
Luminous Flux |
3,100 Im |
|
Color Designation |
Cool White (CW) |
|
Correlated Color Temperature (Nom) |
4000 K |
|
Luminous Efficacy (rated) (Nom) |
151lm/M |
|
Color Consistency |
<6 |
|
Color rendering index (CRI) |
80 |
|
LLMF At End Of Nominal Lifetime (Nom) |
70% |
Flickering value (PstLM) - Flickering value as per 1
EN 61000-3-3
Stroboscopic effect visibility measure (SVM)
Photobiological safety according to EN 62471
Operating and Electrical
Line Frequency
Input Frequency
Power Consumption
Lamp Current (Max)
Lamp Current (Min)
Starting Time (Nom)
Warm-up time to 50% light
Power Factor (Fraction)
Voltage (Nom)
LED alternative to nuorescent lamp power
Inrush current at mains
Max. lamp no. on MCB B type 10A - Mains
0.4
RGO
50 to 60 Hz
50 to 60 Hz
20.5W
97 mA
89 mA
0.5 s
0.5 s
09
220-240 V
58W
8.2
75
Datasheet 2023. April 14
