Philips rc091v 595x1195 50w led panel light

Philips rc091v 595x1195 50w led panel light

定價 HK$688.00
定價 售價 HK$688.00
銷售額 售罄
結帳時計算運費
顏色

RC091V LED48S/840 PSU W60L120

 Power: 50w lumens : 4800

SmartBright Slim Panel provides the most affordable LED solution to replace the TL

troffer. Based on the standard version, we have extended the product family to

600x1,200 versions. With its edge-light architecture, the SmartBright Slim Panel will

deliver comfortable light with excellent uniformity.



Product data

General Information

Beam angle of light source 120 °

Lamp colour code 840 / 865 neutral white / cold white

Light source replaceable No

Number of gear units 1 unit

Driver/power unit/transformer PSU-E [ Power supply unit external (PSU)]

Driver included Yes

Optic type Symmetrical

Luminaire light beam spread 120°

Protection class IEC Safety class II (II)

Glow-wire test 650/30 [ Temperature 650 °C, duration 30 s]

Warranty period 3 years

Constant light output No

Number of products on MCB 14

RoHS mark RoHS mark

Operating and Electrical

Input voltage 220 to 240 V

Input frequency 50 or 60 Hz

Inrush current 19.8 A

Inrush time 0.38 ms

Power factor (min.) 0.9

Controls and Dimming

Dimmable No

Mechanical and Housing

Housing material Metal

Optic material Polymethyl methacrylate

Optical cover/lens material Polystyrene

Fixation material Aluminum

Optical cover/lens finish Frosted

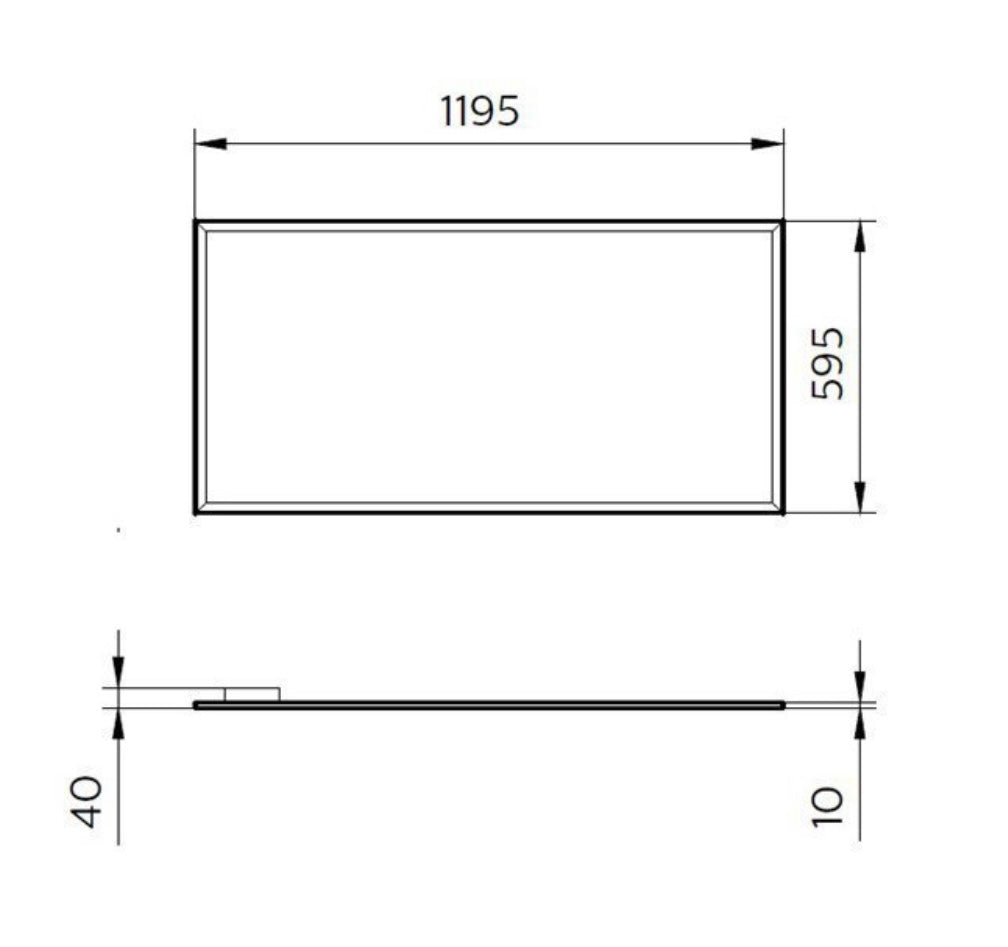

Overall length 1195 mm

Overall width 595 mm

Overall height 40 mm

Colour White

Approval and Application

Ingress protection code IP20 [ Finger-protected]







Materials

Dimensions

Care information
