Rio track light一體化路軌燈 model: L2T610/ L2T611/ L2T612/ 12W/18w/24w

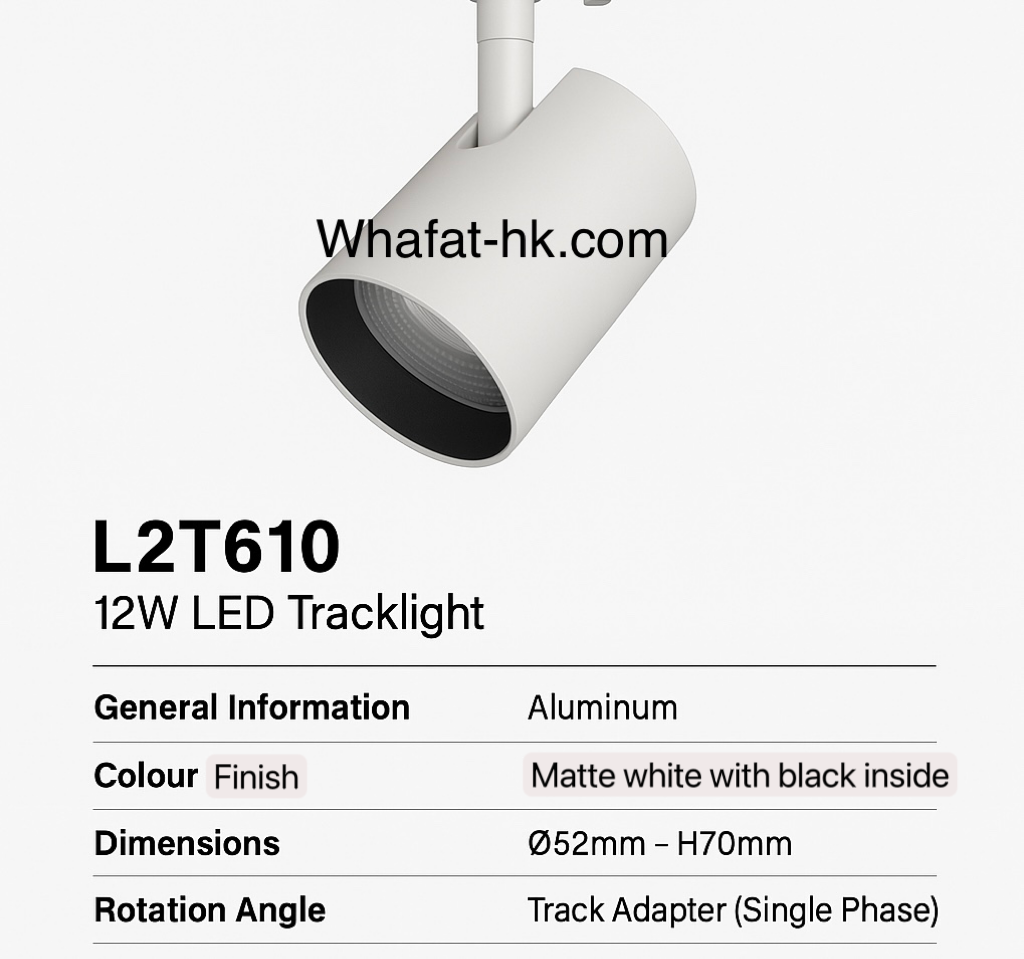

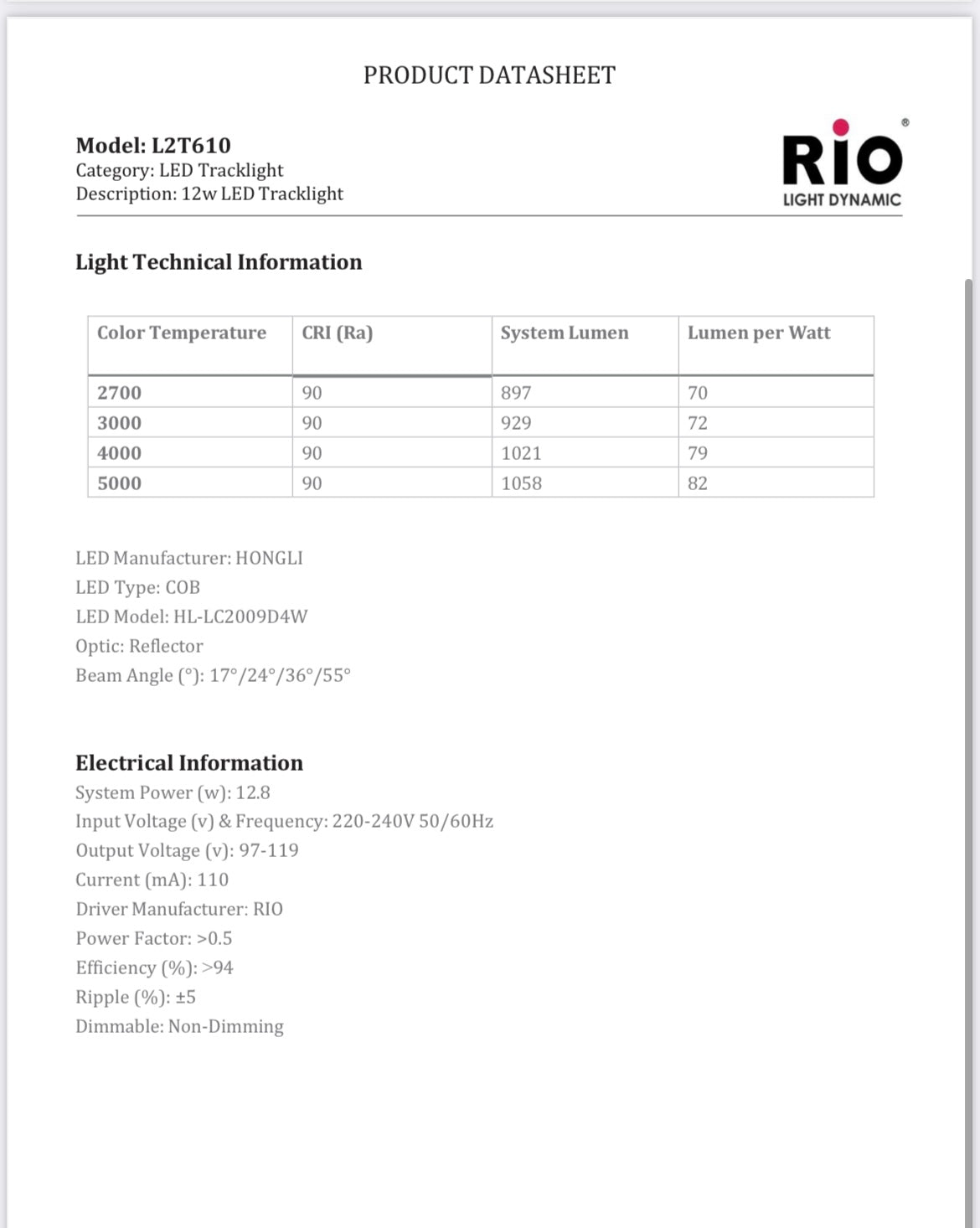

Model: L2T610

Category: LED Tracklight

Description: 12w LED Tracklight

LIGHT DYNAMIC

General Information

Material: Aluminum

Fitting Colors: Matte White, Black Rotation Angle (degree): 350

Tilting Angle (degree): 90

Track System: Available in single wire, 3 wires

IP Rating: 20

Working Temperature (°C): -5 - +35

Storage Temperature (°C): -20 - +50

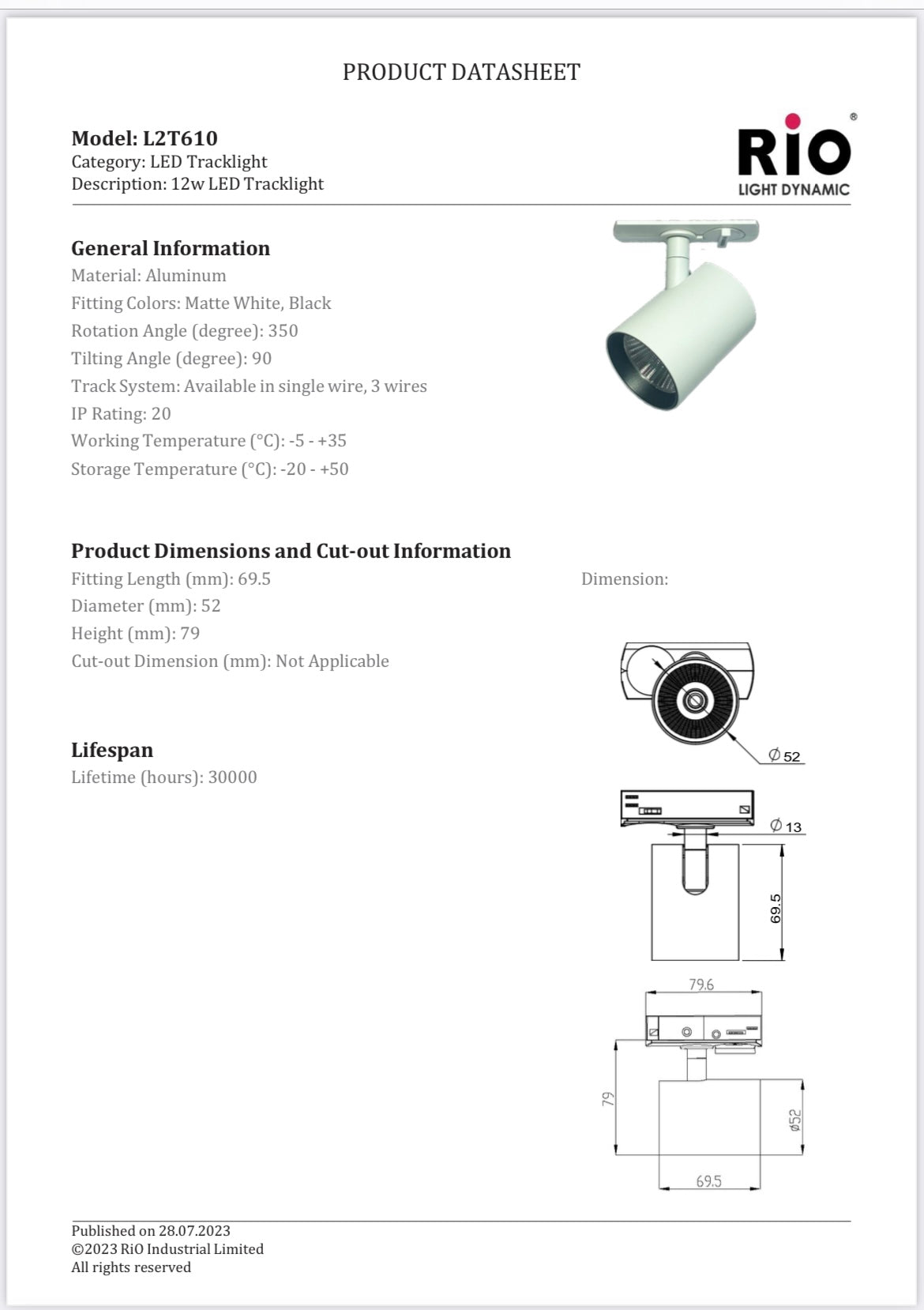

Product Dimensions and Cut-out Information

Fitting Length (mm): 69.5

Diameter (mm): 52

Height (mm): 79

Cut-out Dimension (mm): Not Applicable

Dimension:

Lifespan

Lifetime (hours): 30000

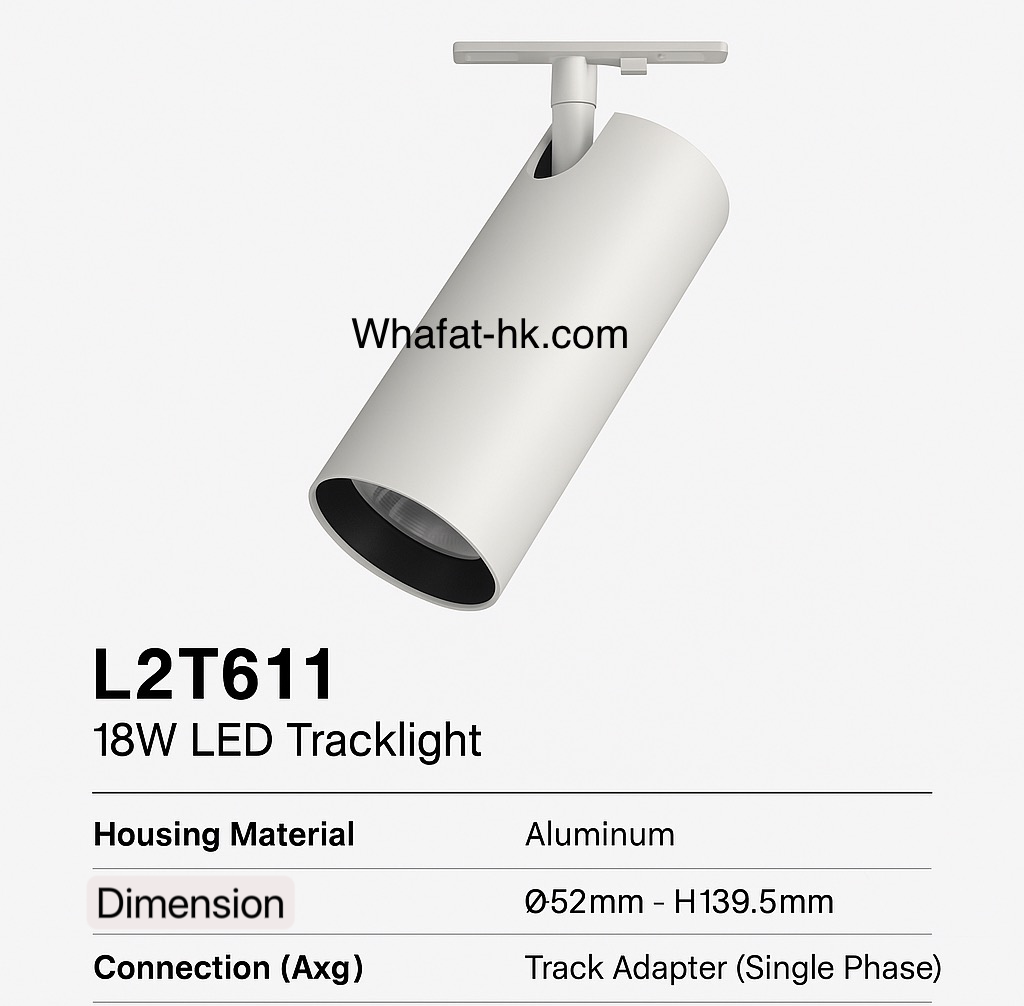

L2T611 18w LED Tracklight

CCT (K) 3000 / 4000 / 6000
CRI 90
Beam Angel (°) 24/36
LED Power (W) 17
System Power (W) 18
Luminus Flux (Lm) 3000/90=1515, 4000/90=1651, 6000/90=1555,
Luminus Efficacy (Lm/W) 3000/90=87, 4000/90=84, 6000/90=89,
Built-in Driver Y
Rotation Angle (°) 350
Tilting Angle (°) 90
Material Aluminum
Fitting Colors White/ Black
Dimensions (DxH) (mm) Ø52 x 139.5

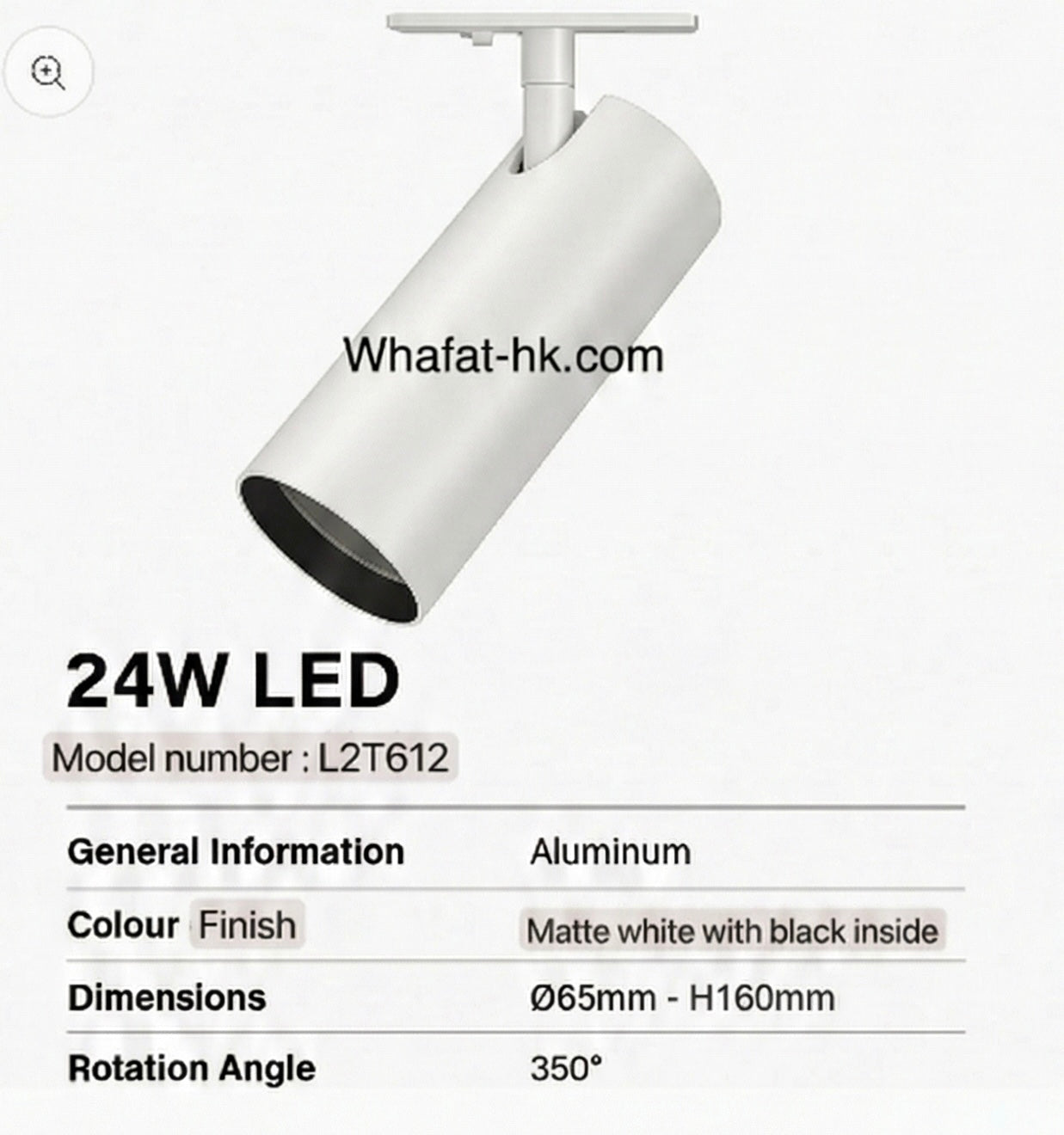

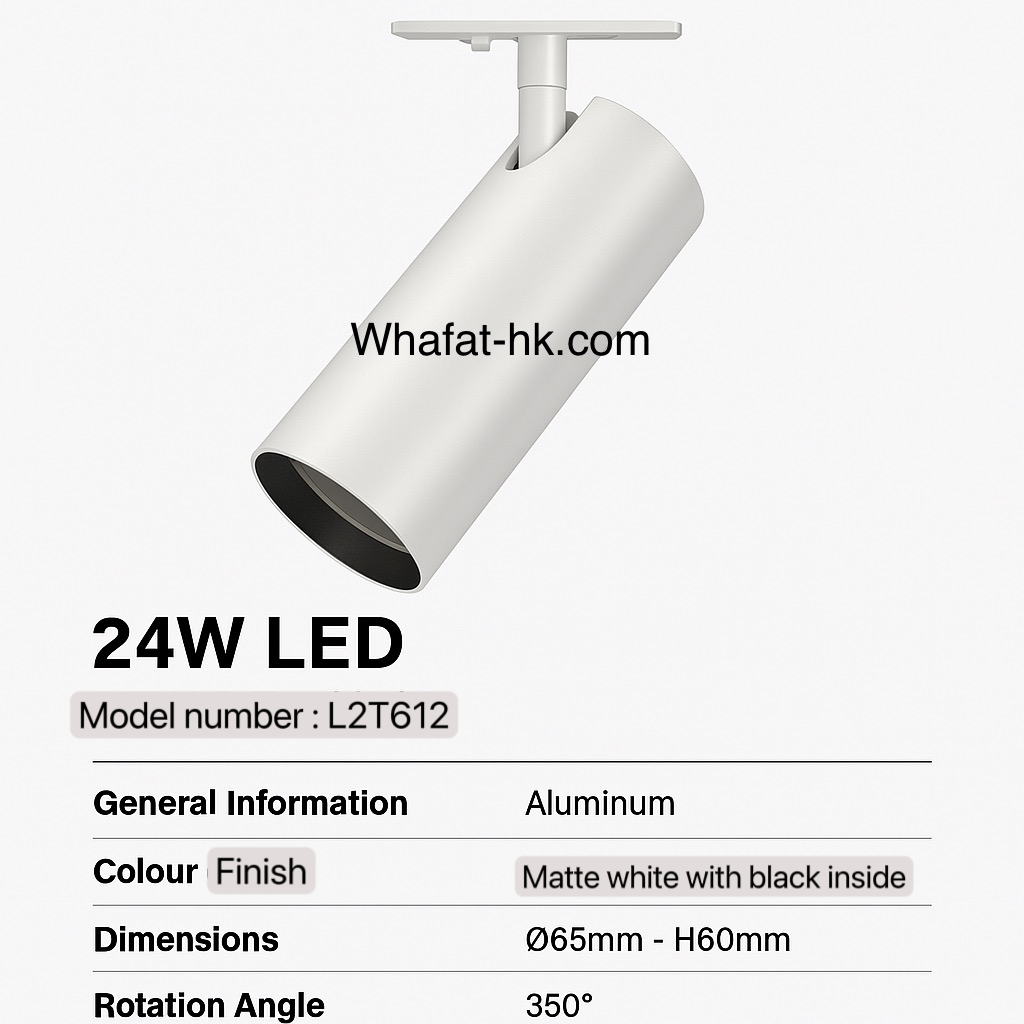

L2T612 24w LED Tracklight

24w LED Tracklight
Track System Available in single wire, 3 wire
CCT (K) 3000 / 4000 / 6000
CRI 90
Beam Angel (°) 24/36
LED Power (W) 23
System Power (W) 24
Luminus Flux (Lm) 3000/90=2362, 4000/90=2418, 6000/90=2398,
Luminus Efficacy (Lm/W) 3000/90=98, 4000/90=101, 6000/90=100,
Built-in Driver Y
Rotation Angle (°) 350
Tilting Angle (°) 90
Material Aluminum
Fitting Colors White/ Black
Dimensions (DxH) (mm) Ø65 x 160
